Product Details

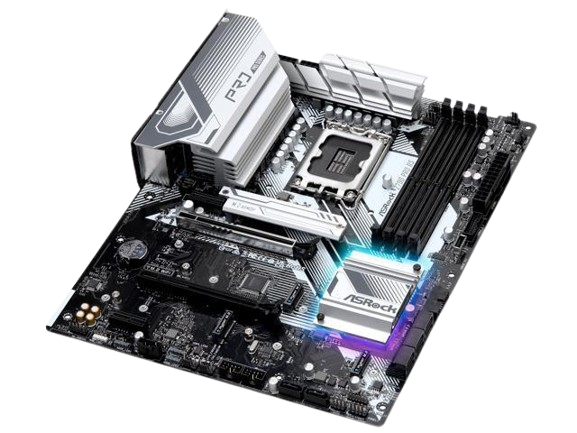

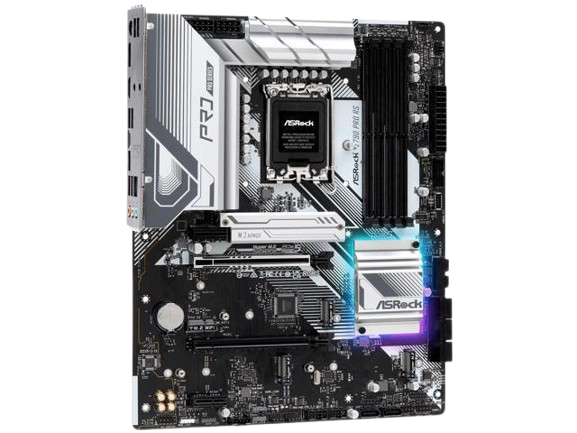

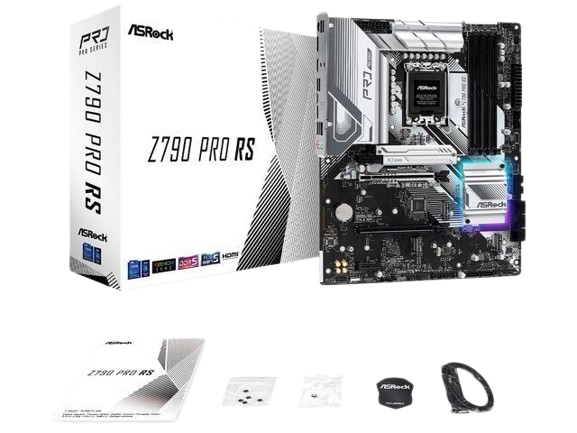

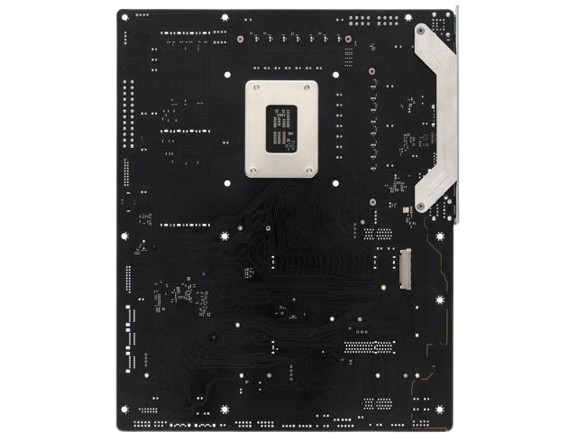

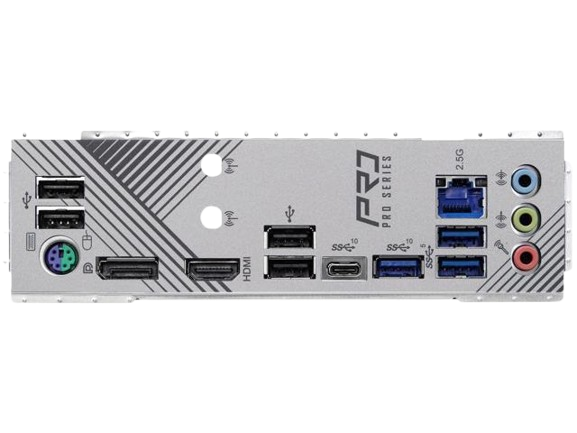

ASRock Z790 Pro RS ATX LGA1700 Motherboard
- In Stock
- |
- ASRock
$148.99
/64
...
Specifications:
| Manufacturer | ASRock |
| Model | Z790 Pro RS |
| Part 1 | Z790 PRO RS |
| Part 2 | 90-MXBK40-A0UAYZ |
| Socket / CPU | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel Z790 |
| Memory Max | 192 GB |
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Speed 1 | DDR5-4400 |
| Memory Speed 2 | DDR5-4800 |
| Memory Speed 3 | DDR5-5200 |
| Memory Speed 4 | DDR5-5600 |
| Memory Speed 5 | DDR5-6000 |
| Memory Speed 6 | DDR5-6400 |
| Memory Speed 7 | DDR5-6600 |
| Memory Speed 8 | DDR5-6800 |
| Color | Silver / Black |
| SLI/CrossFire | CrossFire Capable |
| PCIe x16 Slots | 2 |
| PCIe x8 Slots | 0 |
| PCIe x4 Slots | 0 |
| PCIe x1 Slots | 2 |
| PCI Slots | 0 |
| M.2 Slots 1 | 2260/2280 M-key |
| M.2 Slots 2 | 2260/2280 M-key |
| M.2 Slots 3 | 2260/2280 M-key |
| M.2 Slots 4 | 2260/2280 M-key |
| M.2 Slots 5 | 2230 E-key |
| Mini-PCIe Slots | 0 |
| Half Mini-PCIe Slots | 0 |
| Mini-PCIe / mSATA Slots | 0 |
| mSATA Slots | 0 |
| SATA 6.0 Gb/s | 8 |
| Onboard Ethernet | 1 x 2.5 Gb/s (Realtek RTL8125BG) |
| Onboard Video | Depends on CPU |
| USB 2.0 Headers | 2 |
| USB 2.0 Headers (Single Port) | 0 |
| USB 3.2 Gen 1 Headers | 2 |
| USB 3.2 Gen 2 Headers | 0 |
| USB 3.2 Gen 2x2 Headers | 1 |
| Supports ECC | No |
| Wireless Networking | None |
| RAID Support | Yes |
| Uses Back-Connect Connectors | No |
Additional Information:
| Not Available |
